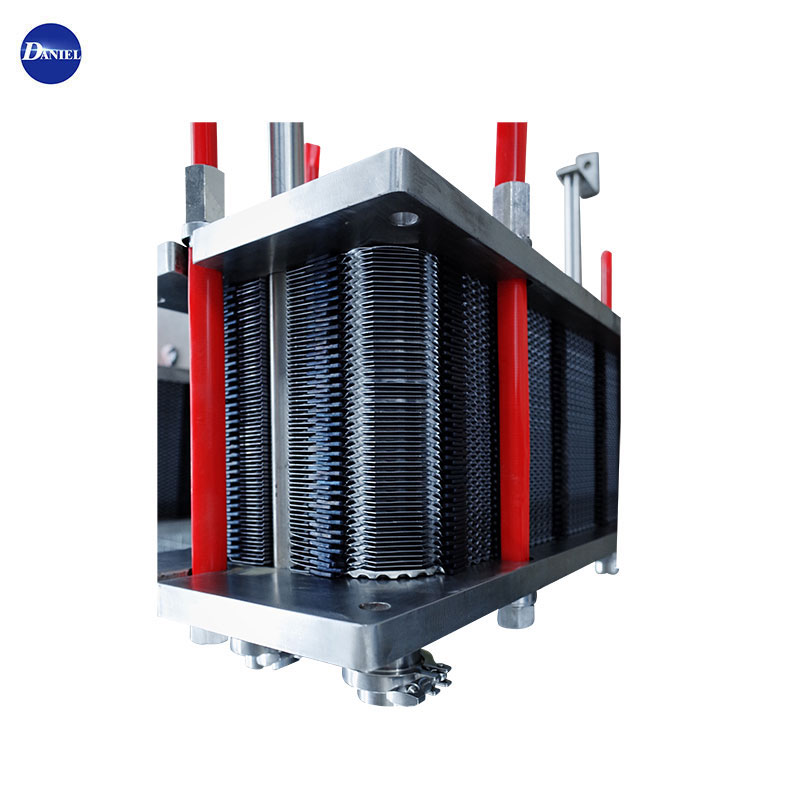

The Daniel Phe M10md Plate and M10mc Heat Exchanger Mould Plate represent the pinnacle of thermal management technology. In industries ranging from automotive manufacturing to industrial cooling, these components ensure optimal heat transfer efficiency, durability, and reliability. This article explores the functionality, applications, and benefits of these heat exchanger mould plates, providing a comprehensive guide for engineers, maintenance professionals, and decision-makers.
Table of Contents
- Introduction to Daniel Phe Heat Exchanger Mould Plates
- Key Design Features of M10md and M10mc Plates
- Performance Benefits in Industrial Applications
- Installation and Maintenance Guidelines
- Comparison with Conventional Heat Exchanger Plates
- Industry Applications and Case Studies
- Common Issues and Troubleshooting
- FAQ
- Conclusion and Contact Information
Introduction to Daniel Phe Heat Exchanger Mould Plates
The Daniel Phe M10md Plate and M10mc Heat Exchanger Mould Plate are precision-engineered components developed by Jiangyin Daniel Cooler Co., Ltd.. These plates are critical for maintaining high-efficiency heat transfer in compact and industrial cooling systems. Unlike traditional plates, they combine advanced metallurgy with optimized surface design to maximize thermal conductivity and durability.
Modern industries demand reliable heat exchangers capable of handling high-pressure and high-temperature operations. Daniel Phe’s M10md and M10mc plates address these challenges by providing uniform heat distribution, resistance to corrosion, and compatibility with various cooling fluids.
Key Design Features of M10md and M10mc Plates
- Material Quality: Constructed using high-grade stainless steel alloys, these plates resist corrosion and thermal fatigue.
- Precision Engineering: Micro-channel designs enhance heat transfer efficiency.
- Compact Size: Optimized plate thickness allows for space-saving installations without compromising performance.
- Sealing Technology: High-performance gaskets ensure leak-proof operation under extreme pressures.
- Surface Treatment: Anti-fouling coatings reduce scaling and maintenance frequency.
Below is a table summarizing the key specifications:
| Specification | M10md Plate | M10mc Plate |
|---|---|---|
| Material | Stainless Steel 316 | Stainless Steel 304 |
| Plate Thickness | 0.6 mm | 0.8 mm |
| Max Operating Pressure | 2.5 MPa | 2.0 MPa |
| Max Operating Temperature | 200°C | 180°C |
| Gasket Type | NBR / EPDM | NBR / EPDM |
Performance Benefits in Industrial Applications
Using Daniel Phe M10md and M10mc plates provides several advantages:
- Enhanced Thermal Efficiency: Optimized micro-channel patterns improve heat transfer by up to 25% compared to conventional plates.
- Durability: High-quality materials ensure long-term performance with minimal wear.
- Corrosion Resistance: Suitable for a wide range of fluids including water, glycol, and specialized industrial coolants.
- Energy Savings: Improved efficiency reduces energy consumption in HVAC and manufacturing operations.
- Reduced Maintenance: Anti-fouling surface treatment and gasket reliability minimize downtime.
Installation and Maintenance Guidelines
Proper installation is essential for the performance of Daniel Phe heat exchanger mould plates. Consider the following steps:
- Ensure correct plate alignment during assembly to prevent gasket leaks.
- Follow torque specifications recommended by Jiangyin Daniel Cooler Co., Ltd. for optimal sealing.
- Regularly inspect for scaling or corrosion, particularly in high-temperature operations.
- Flush the system periodically to remove debris and maintain efficiency.
- Replace gaskets during major maintenance cycles to prevent unexpected failures.
Comparison with Conventional Heat Exchanger Plates
To better understand the advantages, consider this side-by-side comparison:
| Feature | Daniel Phe M10md / M10mc | Conventional Plates |
|---|---|---|
| Heat Transfer Efficiency | High (up to 25% more) | Moderate |
| Corrosion Resistance | Excellent | Average |
| Durability | Long-lasting | Shorter lifespan |
| Maintenance Frequency | Low | High |
| Installation Flexibility | Compact and adaptable | Less flexible |
Industry Applications and Case Studies
Daniel Phe M10md and M10mc plates have been successfully applied in various sectors:
- Automotive Manufacturing: Cooling molds in injection molding systems for automotive components.
- HVAC Systems: Efficient heat exchangers in commercial and industrial HVAC units.
- Food and Beverage Industry: Temperature control in pasteurization and brewing processes.
- Chemical Processing: Safe handling of aggressive fluids with high thermal demands.
Case Study: A leading automotive parts manufacturer reported a 20% reduction in energy consumption after replacing conventional plates with Daniel Phe M10mc plates, while maintenance costs decreased by 30%.
Common Issues and Troubleshooting
While Daniel Phe plates are designed for reliability, some issues may arise if guidelines are not followed:
- Leakage: Often caused by incorrect gasket installation or uneven plate tightening.
- Scaling: May occur in hard water environments; regular cleaning is recommended.
- Reduced Heat Transfer: Can result from clogged channels; flushing the system resolves this.
- Corrosion: Using incompatible fluids can reduce plate lifespan; always adhere to material compatibility charts provided by Jiangyin Daniel Cooler Co., Ltd.
FAQ
Q1: What makes M10md different from M10mc plates?
A: M10md plates are thinner and optimized for higher heat transfer efficiency, while M10mc plates are thicker and suited for higher pressure applications.
Q2: Can these plates handle corrosive fluids?
A: Yes, when using the correct stainless steel variant and compatible gaskets.
Q3: How often should maintenance be performed?
A: Typically, a visual inspection every 3–6 months and a full flush annually is recommended.
Q4: Are custom sizes available?
A: Yes, Jiangyin Daniel Cooler Co., Ltd. offers tailored solutions to meet specific industrial requirements.
Conclusion and Contact Information
The Daniel Phe M10md Plate and M10mc Heat Exchanger Mould Plate are indispensable components for modern industrial cooling systems. By combining advanced materials, precision engineering, and exceptional performance, these plates provide reliable heat management solutions across various industries.
For inquiries, quotes, or custom solutions, contact Jiangyin Daniel Cooler Co., Ltd. today and discover how their products can enhance your thermal management systems.
Contact us for personalized support and professional consultation.
