When it comes to modern industrial and commercial heat transfer, efficiency and space-saving design are essential. Among all heat transfer solutions, the Plate Heat Exchanger stands out for its compact size, high performance, and versatile applications. It has become a critical component in industries such as HVAC, chemical processing, food and beverage, power generation, and marine systems. In this article, we will explore why the Plate Heat Exchanger is an intelligent choice, how it works, its key benefits, and why companies like Jiangyin Daniel Cooler Co., Ltd. are trusted suppliers of these advanced systems.
What Is a Plate Heat Exchanger and How Does It Work?

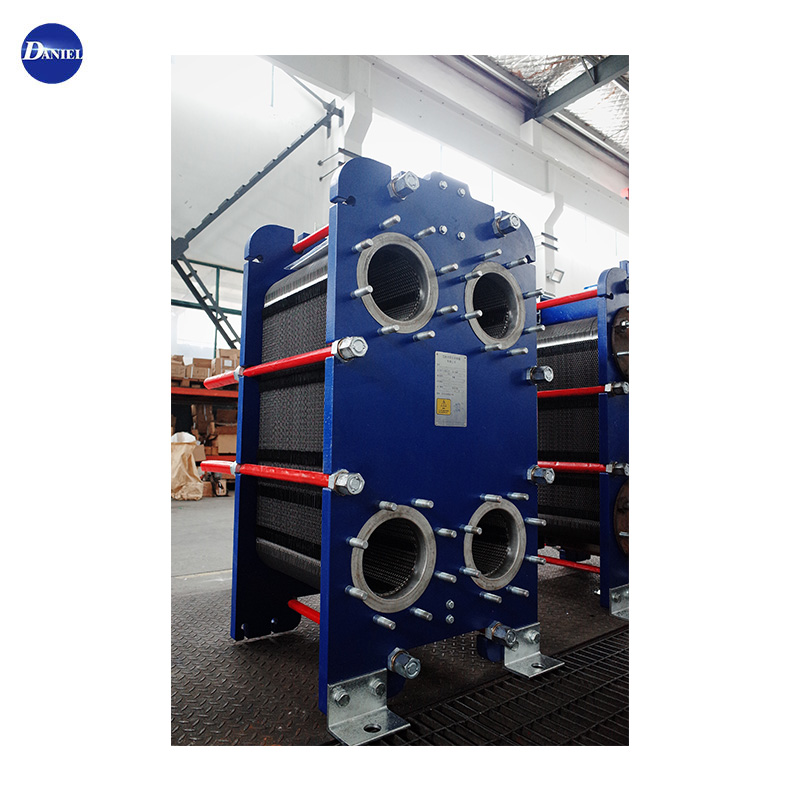

A Plate Heat Exchanger (PHE) is a device designed to transfer heat efficiently between two fluids without them mixing. It consists of multiple thin, corrugated plates stacked together, forming separate flow channels for hot and cold fluids. These plates are typically made of stainless steel or titanium to resist corrosion and provide excellent thermal conductivity.
The principle is simple yet highly efficient: the fluids flow in alternate channels between the plates, allowing heat to transfer from one fluid to the other through the plate surface. The corrugation pattern increases turbulence and heat transfer efficiency while maintaining compactness.
There are several types of Plate Heat Exchangers, including:
-
Gasketed Plate Heat Exchangers – Easy to dismantle for cleaning and maintenance.
-
Brazed Plate Heat Exchangers – Compact and sealed, ideal for refrigeration and HVAC systems.
-
Welded Plate Heat Exchangers – Designed for high-temperature or high-pressure applications.
-
Semi-welded Plate Heat Exchangers – Combine gasket and welded designs for specific chemical processes.
Why Should You Choose a Plate Heat Exchanger Over Traditional Systems?
Traditional shell-and-tube heat exchangers are bulky, less efficient, and difficult to maintain. In contrast, the Plate Heat Exchanger offers:
-
Higher Efficiency: Due to large surface area and turbulent flow, the PHE achieves excellent heat transfer rates.
-
Compact Design: It requires up to 80% less space compared to shell-and-tube systems.
-
Easy Maintenance: The plates can be easily removed for cleaning or replacement.
-
Flexibility: Modular construction allows capacity expansion or modification.
-
Energy Saving: Better heat recovery reduces energy consumption and operational costs.
For example, in HVAC systems, a Plate Heat Exchanger efficiently recovers energy from exhaust air to preheat fresh air, lowering heating costs significantly.
What Are the Technical Specifications of a Plate Heat Exchanger?
Below is an overview of standard parameters provided by Jiangyin Daniel Cooler Co., Ltd., a professional manufacturer specializing in heat exchange equipment:
| Parameter | Specification |
|---|---|
| Plate Material | Stainless Steel (304/316L), Titanium, Hastelloy |
| Plate Thickness | 0.4 – 0.8 mm |
| Frame Material | Carbon Steel / Stainless Steel |
| Design Pressure | Up to 25 bar |
| Design Temperature | -20°C to 180°C |
| Flow Rate | 0.1 m³/h – 1000 m³/h |
| Heat Transfer Coefficient | 3000 – 7000 W/m²·K |
| Connection Type | Threaded / Flanged / Welded |
These specifications can be customized depending on your application. Jiangyin Daniel Cooler Co., Ltd. ensures every Plate Heat Exchanger is precisely engineered and tested to meet strict performance and durability standards.
Where Can Plate Heat Exchangers Be Used Effectively?
Plate Heat Exchangers are widely applied across various industries due to their adaptability and efficiency:
-
HVAC & Refrigeration: Used for heating, cooling, and energy recovery.
-
Food & Beverage: Ideal for pasteurization, fermentation, and temperature control.
-
Chemical & Pharmaceutical: Handles corrosive fluids safely and efficiently.
-
Marine & Power Generation: For oil cooling, freshwater cooling, and heat recovery.
-
Renewable Energy Systems: Plays a key role in geothermal and solar thermal systems.
No matter the industry, a Plate Heat Exchanger ensures stable performance and long-term reliability, reducing downtime and maintenance costs.
How Does Maintenance Affect the Performance of a Plate Heat Exchanger?
Proper maintenance ensures optimal performance and longevity of your Plate Heat Exchanger. Over time, scaling, fouling, or gasket wear can reduce heat transfer efficiency. Regular cleaning and inspection help maintain consistent operation.
Recommended Maintenance Practices:
-
Periodic dismantling and cleaning of plates using chemical or mechanical methods.
-
Inspection and replacement of gaskets if any leakage is detected.
-
Checking for pressure drops or temperature differences that indicate fouling.
-
Using filtered or treated fluids to reduce contamination.
Jiangyin Daniel Cooler Co., Ltd. provides complete technical support and spare parts to help customers maintain their Plate Heat Exchangers effectively.
FAQ About Plate Heat Exchanger
Q1: What factors should I consider when selecting a Plate Heat Exchanger?
A1: Consider operating temperature, pressure, fluid type, flow rate, and required heat transfer capacity. The design should match your process requirements for maximum efficiency and longevity.
Q2: Can a Plate Heat Exchanger handle high-pressure or high-temperature applications?
A2: Yes. Depending on the model and material, Plate Heat Exchangers can operate up to 25 bar and 180°C. For extreme conditions, welded or semi-welded designs are recommended.
Q3: How long does a Plate Heat Exchanger last?
A3: With proper maintenance and correct material selection, a high-quality Plate Heat Exchanger can last 10–20 years or even longer. Periodic inspection ensures extended service life.
Q4: Can I customize a Plate Heat Exchanger for my specific process?
A4: Absolutely. Jiangyin Daniel Cooler Co., Ltd. provides customized design services, including plate materials, frame types, and connection options to meet your unique industrial requirements.
Why Partner with Jiangyin Daniel Cooler Co., Ltd.?
With years of experience in heat exchange technology, Jiangyin Daniel Cooler Co., Ltd. is a trusted manufacturer and supplier of high-performance Plate Heat Exchangers. The company combines advanced production techniques, strict quality control, and responsive customer service to ensure top-level solutions for every application.
Their team focuses on energy efficiency, reliability, and customization, helping industries achieve sustainable heat transfer performance while minimizing operational costs.
Conclusion: Is the Plate Heat Exchanger Right for Your System?
If your business values energy efficiency, compact design, and flexible operation, then the Plate Heat Exchanger is the ideal solution. Its modular structure, high thermal performance, and easy maintenance make it indispensable in today's industrial processes. Whether for HVAC, chemical, or renewable energy applications, partnering with Jiangyin Daniel Cooler Co., Ltd. ensures you receive reliable products and expert technical support.
Contact Jiangyin Daniel Cooler Co., Ltd. today to discuss your heat exchange needs and discover how our customized Plate Heat Exchanger solutions can enhance your system's efficiency and productivity.
